Racoreria Accesorial

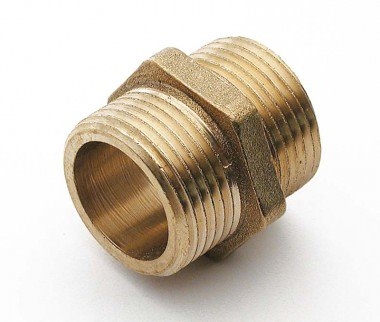

EMPALME MACHO



Rosca Rosca2
1/2 1/2
1/2 3/4
3/4 3/4
3/4 1″
1″ 1″
1″ 1″1/4
1″1/4 1″1/4
1″1/4 1″1/2
1″1/2 1″1/2
1″1/2 2″
2″ 2″
2″ 2″1/2
2″ 3″
3″ 3″



EMPALME MACHO



Rosca Rosca2
1/4 1/4
3/8 1/4
3/8 3/8
1/2 3/8
1/2 1/2
3/4 1/2
3/4 3/4
1″ 3/4
1″ 1″
1″1/4 1″
1″1/4 1″1/4
1″1/2 1″1/4
1″1/2 1″1/2
2″ 1″1/2
2″ 2″



ESFERICA SOLDAR

  • BSP · GAS



Medida
1/4
3/8
1/2
3/4
1″

EMPALME MACHO

  • JIC · SAE



Rosca1 Rosca2
7/16 7/16
1/2 1/2
9/16 9/16
3/4 3/4
7/8 7/8
1″1/16 1″1/16
1″5/16 1″5/16
1″5/8 1″5/8
1″7/8 1″7/8

TUERCA

  • METRICO
Rosca Tubo
8×100 4LL
10×100 6LL
12×100 8LL
14×100 10LL
16×100 12LL

12×150 6L
14×150 8L
16×150 10L
18×150 12L
22×150 15L
26×150 18L
30×200 22L
36×200 28L
45×200 35L
52×200 42L

14×150 6S
16×150 8S
18×150 10S
20×150 12S
22×150 14S
24×150 16S
30×200 20S
36×200 25S
42×200 30S
52×200 38S

EMPALME MACHO

  • ORFS
Rosca Rosca2
9/16 9/16
11/16 11/16
13/16 13/16
1″ 1″
1″3/16 1″3/16
1″7/16 1″7/16

RACOR 3 PIEZAS



Rosca Rosca2
3/4 3/4
1″ 1″
1″1/4 1″1/4
1″1/2 1″1/2
2″ 2″

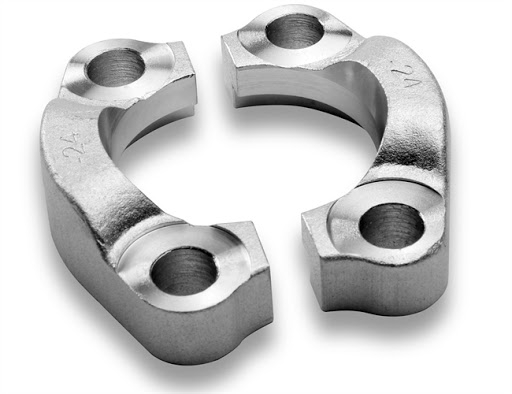

SEMIBRIDA SAE

SERIE 3000 Ø
1/2 30.2
3/4 38.1
1″ 44.5
1″1/4 50.8
1″1/2 60.3
2″ 71.4
SERIE 6000 Ø
1/2 31.7
3/4 41.3
1″ 47.6
1″1/4 54
1″1/2 63.5
2″ 79.4

ESFERICA ROSCADA

  • BSP · GAS



Medida Rosca
1/4 1/4
3/8 3/8
1/2 1/2
3/4 3/4
1″ 1″

EMPALME MACHO

  • BSP · SAE



Rosca
SAE		 Rosca
GAS
7/16 1/8
7/16 1/4
7/16 3/8
7/16 1/2
1/2 1/4
9/16 1/4
9/16 3/8
9/16 1/2
3/4 1/4
3/4 3/8
3/4 1/2
3/4 3/4
7/8 3/8
7/8 1/2
7/8 3/4
1″1/16 3/8
1″1/16 1/2
1″1/16 3/4
1″1/16 1″
1″5/16 3/4
1″5/16 1″
1″5/8 1″
1″5/8 1″1/4
1″7/8 1″1/2

EMPALME MACHO

  • SAE · UNF



Rosca
SAE(JIC)		 Rosca
UNF
7/16 7/16
7/16 1/2

7/16

 9/16
1/2 1/2
9/16 9/16
9/16 3/4
3/4 3/4
3/4 7/8
3/4 1″1/16
7/8 3/4
7/8 7/8
7/8 1″1/16
1″1/16 3/4
1″1/16 7/8
1″1/16 1″1/16
1″1/16 1″5/16
1″5/16 1″1/16
1″5/16 1″5/16

ANILLO DE CIERRE

  • METRICO
Medida
4LL
6LL
8LL
10LL
12LL

6L
8L
10L
12L
15L
18L
22L
28L
35L
42L

6S
8S
10S
12S
14S
16S
20S
25S
30S
38S
