Hidráulica

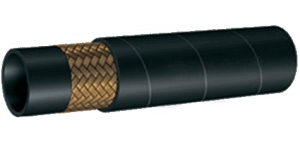

TUBERIA SAE100 R1
Refuerzo: 1 malla de acero de alta resistencia.
Temperatura: -40ºC a +100ºC.
Aplicacion: Aceite Hidraulico, Agua, etc...
| Ø Pulgadas | Ø Interior (mm) | Presión Trabajo (bar) |
|---|---|---|
| 1/4 | 6.4 | 225 |
| 5/16 | 7.9 | 215 |
| 3/8 | 9.5 | 180 |
| 1/2 | 12.7 | 160 |
| 5/8 | 15.9 | 130 |
| 3/4 | 19.0 | 105 |
| 1" | 25.4 | 88 |
| 1"1/4 | 31.8 | 63 |
| 1"1/2 | 38.1 | 50 |
| 2" | 50.8 | 40 |
ENCHUFE RAPIDO
SERIE PUNZON ROSCA GAS
| Rosca |
|---|
| 1/4 |
| 3/8 |
| 1/2 |
| 3/4 |
| 1" |
ESFERICA SOLDAR
GAS BSP
| Medida |
|---|
| 1/4 |
| 3/8 |
| 1/2 |
| 3/4 |
| 1" |
TUBERIA SAE100 2SC
Refuerzo: 2 mallas de acero de alta resistencia.
Temperatura: -40ºC a +100ºC.
Aplicacion: Aceite Hidraulico, Agua, etc...
| Ø Pulgadas | Ø Interior (mm) | Presión Trabajo (bar) |
|---|---|---|
| 1/4 | 6.4 | 420 |
| 5/16 | 7.9 | 380 |
| 3/8 | 9.5 | 360 |
| 1/2 | 12.7 | 300 |
| 5/8 | 15.9 | 270 |
| 3/4 | 19.0 | 230 |
| 1" | 25.4 | 175 |
| 1"1/4 | 31.8 | 125 |
| 1"1/2 | 38.1 | 90 |
| 2" | 50.8 | 80 |
ENCHUFE RAPIDO
SERIE BOLA ROSCA GAS
| Rosca |
|---|
| 1/4 |
| 3/8 |
| 1/2 |
| 3/4 |
| 1" |
ESFERICA ROSCADA
GAS BSP
| Medida | Rosca |
|---|---|
| 1/4 | 1/4 |
| 3/8 | 3/8 |
| 1/2 | 1/2 |
| 3/4 | 3/4 |
| 1" | 1" |
TUBERIA SAE100 R1
ALTA TEMPERATURA
Refuerzo: 1 malla de acero de alta resistencia.
Temperatura: -40ºC a +135ºC. (hasta 150ºC)
Aplicacion: Compresores,Aceite Hidraulico,Agua,etc...
| Ø Pulgadas | Ø Interior (mm) | Presión Trabajo (bar) |
|---|---|---|
| 1/4 | 6.4 | 225 |
| 5/16 | 7.9 | 215 |
| 3/8 | 9.5 | 180 |
| 1/2 | 12.7 | 160 |
| 5/8 | 15.9 | 130 |
| 3/4 | 19.0 | 105 |
| 1" | 25.4 | 88 |
| 1"1/4 | 31.8 | 63 |
| 1"1/2 | 38.1 | 50 |
TAPON PROTECTOR PLASTICO
SERIE BOLA SERIE PUNZON
| Rosca |
|---|
| 1/4 |
| 3/8 |
| 1/2 |
| 3/4 |
| 1" |
TORNILLO HUECO SIMPLE
GAS BSP
| Rosca |
|---|
| 1/8 |
| 1/4 |
| 3/8 |
| 1/2 |
| 3/4 |
| 1" |
TUBERIA SAE100 2SC
ALTA TEMPERATURA
Refuerzo: 2 mallas de acero de alta resistencia.
Temperatura: -40ºC a +135ºC. (hasta 150ºC)
Aplicacion: Hidrolimpiadoras Alta Presion, Agua,etc...
| Ø Pulgadas | Ø Interior (mm) | Presión Trabajo (bar) |
|---|---|---|
| 1/4 | 6.4 | 400 |
| 5/16 | 7.9 | 350 |
| 3/8 | 9.5 | 330 |
ENCHUFE RAPIDO
SERIE CARAS PLANAS ROSCA GAS
| Rosca | |
|---|---|
| 1/4 | |
| 3/8 | |
| 1/2 | |
| 1/2 | Gran Caudal |
| 3/4 | |
| 3/4 | Gran Caudal |
| 1" |
TORNILLO HUECO DOBLE
GAS BSP
| Rosca |
|---|
| 1/4 |
| 3/8 |
| 1/2 |
| 3/4 |
| 1" |
